Preferences and keyboard shortcuts

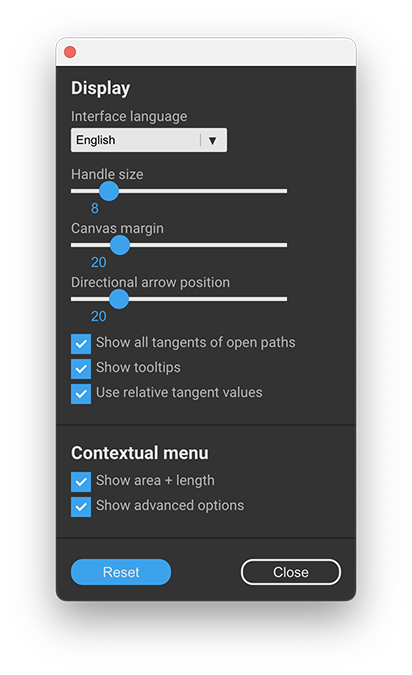

The Preferences menu can be accessed from the main panel's hamburger menu > Preferences…
Penpal is localized into Chinese, German, Italian, Japanese, Portuguese, Russian and Spanish languages. Select your preferred language in the dropdown.
You can adjust the next three settings by clicking on the sliders or clicking the numbers to their right. However, these settings can also be adjusted on the fly using keyboard shortcuts, without opening the preferences window at all, by using the - and + keys, with modifiers, whilst Penpal is the active panel in After Effects - see below for details.
Handle Size determines the size, in pixels, that point and tangent indicators (squares and circles) display in the panel. On high-DPI screens you may find that even numbers work better than odd.
You can also adjust handle size with the + and - keys, without any modifier keys.
Canvas margin sets the width of the border around all the paths displayed in the canvas. A wider margin can make it easier to drag selection marquees.
You can also adjust canvas margin with the + and - keys by also holding Alt.
Directional arrow position simply offsets the position of the small, elongated arrow that shows you the direction and first vertex of each path.
You can also adjust directional arrow position with the + and - keys, by also holding Shift.
Show all tangents of open paths - With an open path, the in tangent of the first point and the out tangent of the last point have no effect on the appearance of the path. If you deal with a lot of open paths you may wish not to see those tangents.
Show tooltips can be used to disable the tooltip bar at the bottom of the canvas once you are familiar with all of Penpal's functions
Use relative tangent values - typically, tangent values are treated by After Effects as being relative to their parent point, eg. a tangent with value [0,0] is a zero'ed tangent. Disabling this toggle will make Penpal use absolute tangent values - in the same co-ordinate space as points - so a zero'd tangent will have the same values as it's parent point, and a tangent with value [0,0] would be at the origin of the current Space, eg. the top-left corner of the composition in Comp Space.
You can edit point and tangent values directly by double-clicking on them.
Contextual menu You can disable the data options in the context menu if you prefer.
